Description

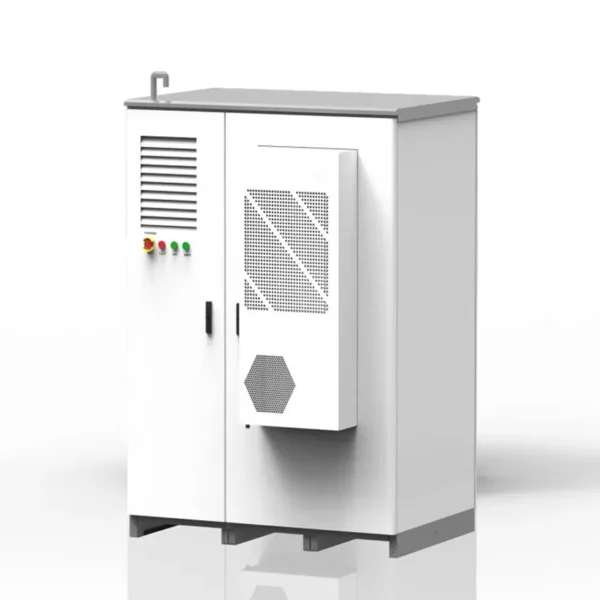

Specifications of AI Air-cooling Outdoor ESS Cabinet:
| DC Data | |||
| Voltage range | DC600V~DC900V | DC channel | 1 |
| Rated current | 212A | Working mode | Constant power, constant current |
| AC Data | |||
| AC output | 3P+N+PE | Rated power | 125kW |
| Rated voltage | 380/400 Vac | Rated current | 189A |
| Voltage range | -15%~+15% | Rated frequency | 50Hz/60Hz |
| Frequency range | Rated frequency±2.5Hz | Power factor | -1~1 |
| Output harmonics | ≤3% | ||
| Battery Data | |||
| Number of battery clusters | 1 | Single combination | 1P48S*5 |
| Battery cell capacity | 215.04kWh | Battery cell capacity | 280Ah |
| Max. charge/discharge rate | 0.5C | Cycle life | ≥8000@25℃ 0.5C/0.5C, 90%DOD, 70%EOL |
| Liquid Cooling Data | |||
| Liquid cooled model | LCI-30CR-21Z3-1227 | Quantity of liquid cooling | 1 |
| Rated flow rate | 30L/min | Cooling Power | 3kW |
| Heating power | 2kW | Refrigerant | R410A |
| Environment Data | |||
| Operating temp. range | -20℃~55℃ | Storage temperature | -40℃~70℃（No Battery） |
| Relative humidity | 0%RH~90%RH, No condensation | Altitude | ≤5000m（＞3000m Need to reduce the amount） |
| Noise | ＜80dB | ||
| System Data | |||
| Communication interface | RS485、Ethernet、4G | Communication protocol | ModBus TCP/RTU |
| Protection grade | IP54（Power control system） | Cooling method | Liquid-colling |
| IP55（Energy storage battery system） | |||
| Size（W×D×H） | 1100*1350*2350 | Weight | 2500kg |
Features of AI Air-cooling Outdoor ESS Cabinet
- Economical and efficient: Equipped with long life cycle battery cells, highly integrated design, and intelligent temperature control.
- Safe and reliable: Specially designed battery cells for energy storage, intelligent battery cell detection, and multiple safety protections.
- Intelligent operation and maintenance: Energy storage intelligent cloud management system with full-scene intervention, multi-functional modules, and digital management.
- Convenient and flexible: Efficient installation and operation with whole cabinet transportation and flexible deployment.
About Us
We are a professional and innovative company specializing in the development of new energy and electric power. Our company integrates production, installation, and research and development to provide clients with complete solutions. Our advanced production and testing equipment, well-established scientific management, and first-class after-sales service have enabled us to continuously grow and expand. Over the years, our company has obtained various certifications such as Enterprise Credit AAA Certification, National Compulsory Product CCC Certification, Voluntary Product CQC Certification, and ISO System Certification.
We highly value technological innovation and quality improvement, continually enhancing the technological content of our products. Following the concept that technology is the primary productive force, we produce high-quality products. Currently, our company mainly focuses on two areas: new energy and complete sets of high and low voltage equipment. We innovate our products to meet the unique needs of clients in various industries. We also highly value the pre-sales, sales, and after-sales service of our products. Customer satisfaction is the driving force behind our continuous development. We are always progressing with the times while constantly innovating and growing.
