Description

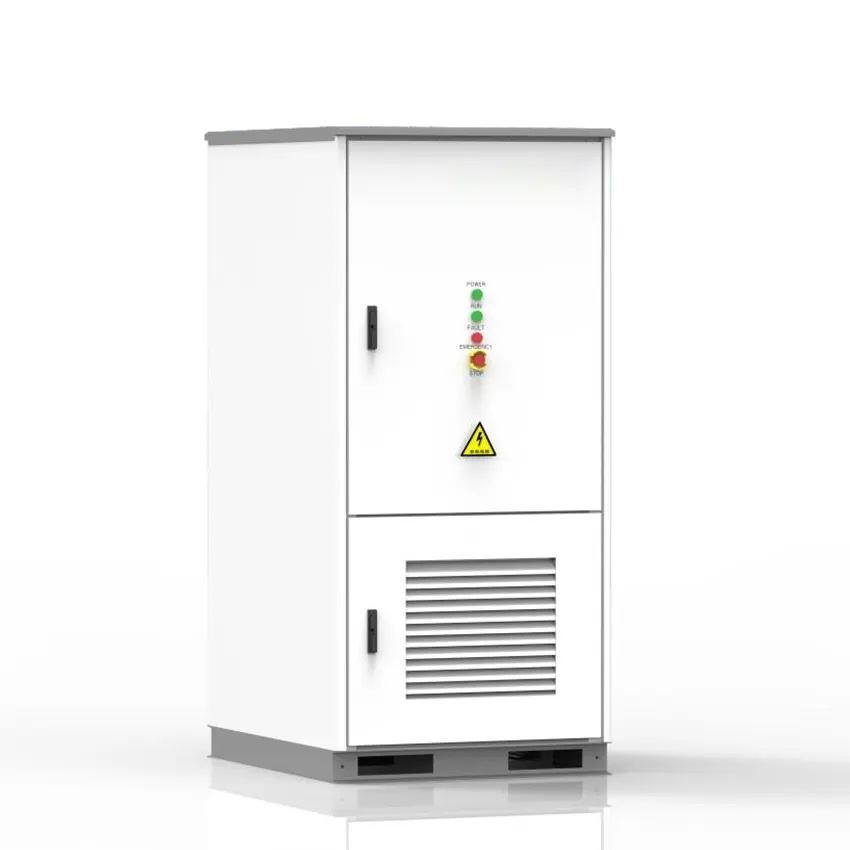

Specifications for AI Liquid-cooling Outdoor ESS Cabinet
| DC Data | |||
| Voltage range | DC600V~DC900V | DC channel | 1 |
| Rated current | 212A | Working mode | Constant power, constant current |
| AC Data | |||
| AC output | 3P+N+PE | Rated power | 125kW |
| Rated voltage | 380/400 Vac | Rated current | 189A |
| Voltage range | -15%~+15% | Rated frequency | 50Hz/60Hz |
| Frequency range | Rated frequency¡À2.5Hz | Power factor | -1~1 |
| Output harmonics | ¡Ü3% | ||
| Battery Data | |||
| Number of battery clusters | 1 | Single combination | 1P48S*5 |
| Battery cell capacity | 215.04kWh | Battery cell capacity | 280Ah |
| Max. charge/discharge rate | 0.5C | Cycle life | ¡Ý8000@25¡æ 0.5C/0.5C, 90%DOD, 70%EOL |
| Liquid Cooling Data | |||
| Liquid cooled model | LCI-30CR-21Z3-1227 | Quantity of liquid cooling | 1 |
| Rated flow rate | 30L/min | Cooling Power | 3kW |
| Heating power | 2kW | Refrigerant | R410A |
| Environment Data | |||
| Operating temp. range | -20¡æ~55¡æ | Storage temperature | -40¡æ~70¡æ£¨No Battery£© |
| Relative humidity | 0%RH~90%RH, No condensation | Altitude | ¡Ü5000m£¨£¾3000m Need to reduce the amount£© |
| Noise | £¼80dB | ||
| System Data | |||
| Communication interface | RS485¡¢Ethernet¡¢4G | Communication protocol | ModBus TCP/RTU |
| Protection grade | IP54£¨Power control system£© IP55£¨Energy storage battery system£© | Cooling method | Liquid-colling |
| Size£¨W¡ÁD¡ÁH£© | 1100*1350*2350 | Weight | 2500kg |
Features of AI Liquid-cooling Outdoor ESS Cabinet
- Time and space safety: Three-level fire protection, cloud-edge linkage to predict cell status, eliminate thermal runaway, multi-level DC safety protection, high-quality liquid-cooled cells, temperature difference ¡Ü3¡æ, fully insured coverage
- Structured functional design: No central control building block design, higher energy density, smaller volume, active battery balance management, extended battery life, fully online debugging, and installation ready for operation
- Intelligent operation and maintenance: All-piece modular design, simpler operation and maintenance, online intelligent operation and maintenance, self-inspection, self-analysis, self-diagnosis, and self-operation and maintenance, fully achieving unmanned guarding, extending product functions, fully cloud-based, and seamless traceability
- Intelligent collaboration: Intelligent switching strategies for different scenarios, peak load shaving, capacity management, dynamic expansion, new energy consumption, plan response curves, local and cloud monitoring linkage, digital rapid diagnosis, intelligent automatic inspection, 3S collaboration, closed-loop safety logic for EMS, achieving system safety
- Flexible and efficient: AC and DC can be independently designed to achieve flexible configuration, no parallel circulation, significantly reducing energy loss, small single unit weight, and easy installation
- Safety and reliability: Equipped with a three-level fire protection system to achieve comprehensive protection of the system, precision liquid-cooled temperature control design to achieve long-term stability, different cell temperature differences ¡Ü3¡æ, battery balance management, and extended battery life
