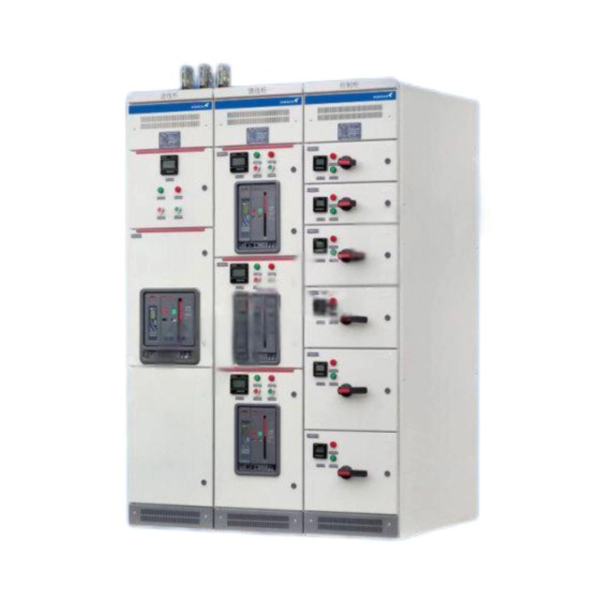

GCS AC Low-voltage Draw Out Switchgear

Description

Specifications of GCS AC Low-voltage Draw Out Switchgear

Features of GCS AC Low-voltage Draw Out Switchgear:

• Applicable to power plants, substations, petrochemical departments, industrial and mining enterprises, hotels, and high-rise buildings, etc., for low-voltage distribution systems.
• Suitable for power distribution and motor control centers, motor control centers with capacitor compensation, and electric energy conversion, distribution, and control.
• Fulfills the special interface requirements for low-voltage power control centers and motor control centers in large-capacity power plants and large-scale petrochemical industries, etc.
• Designed to meet the increasing demands of the power market for capacity expansion, computer interfaces, centralized control of power, convenient installation and maintenance, and shorter accident handling time.
• New type of low-voltage draw out switchgear designed with the principles of safety, economy, rationality, and reliability.
• High breaking and making capacity, good dynamic stability, flexible electrical schemes, convenient combination, strong practicality, innovative structure, and high protection level.
• Can be used as a replacement product for low-voltage draw out switchgear.

Structure of GCS AC Low-voltage Draw Out Switchgear

• The main framework of the device is constructed using 8MF type steel.
• The framework is built using two different structural forms, including partial welding.
• The main framework is equipped with installation module holes with a spacing of E=20mm.
• The various functional compartments of the device are strictly separated.
• The isolated compartments primarily consist of functional unit compartments, bus compartments, and cable compartments.
• Each functional unit operates independently within its respective compartment.
• The traditional design of placing the horizontal main busbar on top of the cabinet has not been adopted in the device.
• This design ensures that there are outlet channels both above and below the cable compartment.
