Description

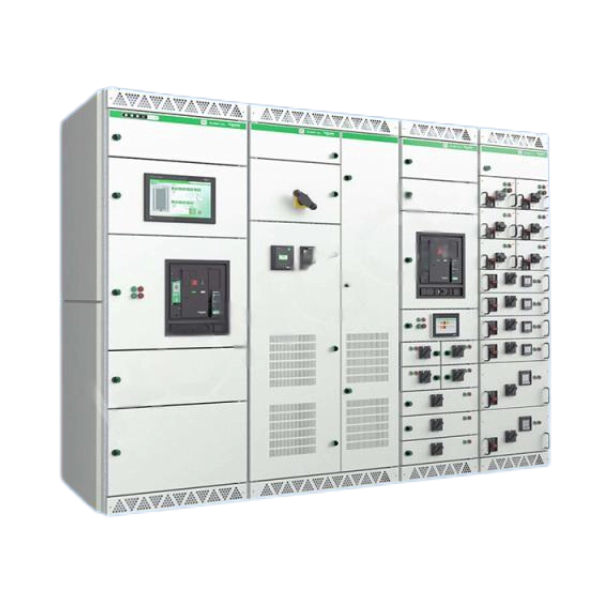

Specifications of Schneider BlokSeT 5000
| Applications | distributing |
| motor control | |
| Reference standard | GB7251.1/12 |
| Installation location | indoor |
| Operating ambient temperature (℃) | -5 to 40 |
| Operating ambient humidity (40 ℃) | ≤50% |
| Altitude (m) | ≤2000 |
Electrical parameters
| Rated working voltage (V AC) | 400 | |
| Rated insulation voltage (V AC) | 1000 | |
| Rated impulse withstand voltage (kV) | 12 | |
| overvoltage category | IV | |
| pollution degree | 3 | |
| Rated frequency (Hz) | 50/60 | |
| Horizontal bus | Rated current (a) | 5000 |
| Rated short-time withstand current (ka/1s) | 42/50/65/85/100 | |
| Rated peak withstand current (KA) | 88/105/143/187/220 | |
| Vertical busbar | Rated current (a) | 2350 |
| Rated short-time withstand current (ka/1s) | 30/50/65 | |
| Rated peak withstand current (KA) | 63/105/143 | |
| Grounding system | TT-IT-TNS-TNC | |
| Maximum incoming/outgoing switch (a) | 5000 | |
| Maximum motor capacity (kw) | 160 | |
| Reactive power compensation (kvar) | natural ventilation | 200 |
| force-ventilate | 400 | |
Features of Schneider BlokSeT 5000:
- Builds upon Schneider Electric’s advanced technology experience in the field of low-voltage electrical and low-voltage complete sets
- Tailored to meet the needs and usage habits of the Chinese market and customers
- Suitable for applications such as distribution protection, motor starting & protection, and reactive power compensation
About Us

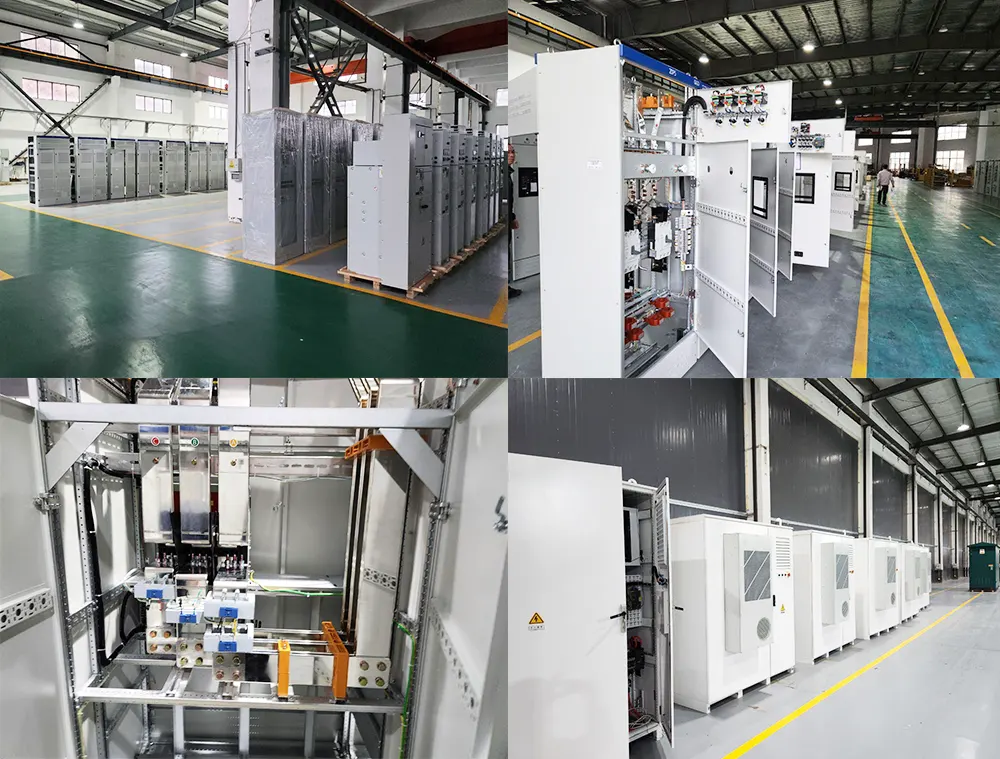

We are an innovative company specializing in the development of new energy and power, providing customers with complete solutions through production, installation, and research and development. Our advanced production and testing equipment, comprehensive scientific management, and first-class after-sales service have enabled us to continuously grow and expand. Over the years, our company has successively passed various certifications, including enterprise credit AAA certification, national mandatory product CCC certification, voluntary product CQC certification, ISO system certification, and more.
We attach great importance to technological innovation and quality improvement, continuously improving the technological content of our products. Adhering to the belief that technology is the primary productive force, we produce high-quality products. Currently, our company mainly focuses on two aspects: new energy and complete sets of high and low voltage equipment. We continuously innovate our products to meet the unique needs of customers in various industries. We also attach great importance to pre-sales, in-sales, and after-sales services. Customer satisfaction is the driving force behind our continuous development. We strive to innovate and grow while keeping pace with the times.
Cooper Edison LSN is one of our product lines, specializing in switchgear. Our switchgear is designed and manufactured with advanced technology and strict quality control to ensure the safety and reliability of our products. With our excellent technical team and production capacity, we can provide customized solutions for customers’ unique needs.
